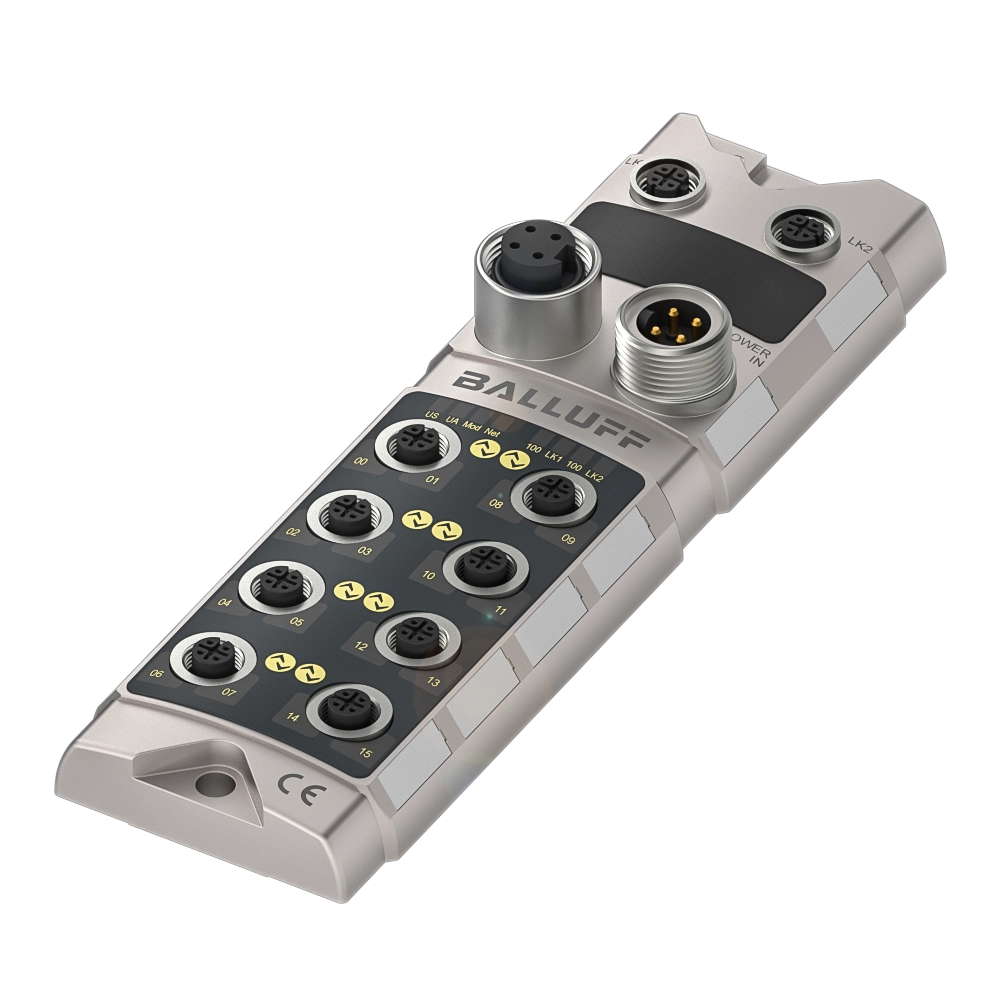

[BNI00HM] BALLUFF BNI EIP-508-005-Z015-013 (New) - BALLUFF
Interface & Connectivity:
EtherNet/IP, REST API, MQTT, 8x IO-Link
Port Class: Type A
Electrical:
Max Output Current: 2 A
Operating Voltage: 18...30.2 VDC
Current Sum: 9.0 A (Sensor & Actuator)
Connections:
COM 1/2: M12x1, 4-pin, D-coded
Voltage IN/OUT: 7/8"-Male/Female, 4-pin
I/O Slots: 8x M12x1, 5-pin, A-coded
I/O:
16x Digital Inputs/Outputs, Configurable
Physical:
Housing: Die-cast zinc, nickel-plated
Dimension: 68 x 37.9 x 224 mm
Temp: -25...70 °C
IP Rating: IP67
IO-Link Version: 1.1.3
| Marca/Fabricante: | BALLUFF |
| Estatus: |
Activo
|
5 piezas disponibles
Información Técnica
