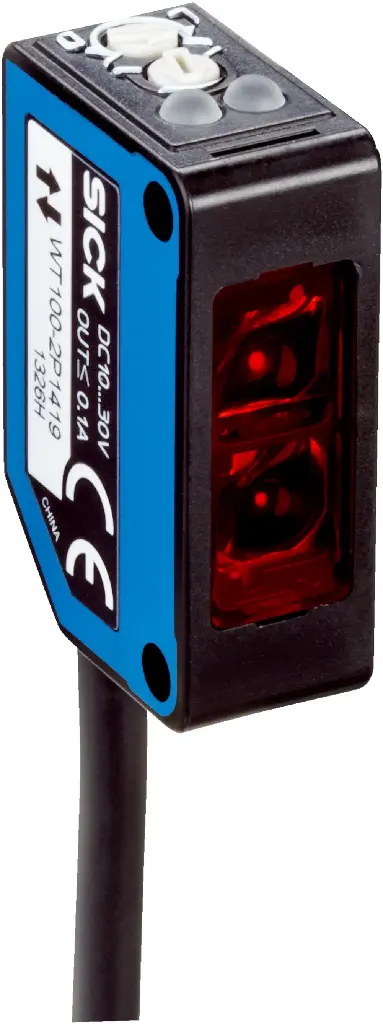

Functional principle: Photoelectric retro-reflective sensor with minimum distance to reflector (dual lens system)
Dimensions (W x H x D): 11 mm x 31 mm x 20 mm
Housing design (light emission): Rectangular
Sensing range max.: 0.01 m to 7.2 m
Sensing range: 0.01 m to 5.5 m
Type of light: Visible red light
Light source: LED
Light spot size (distance): Ø 280 mm at 4 m
Wavelength: 632 nm
Adjustment: Potentiometer (Sensitivity)
