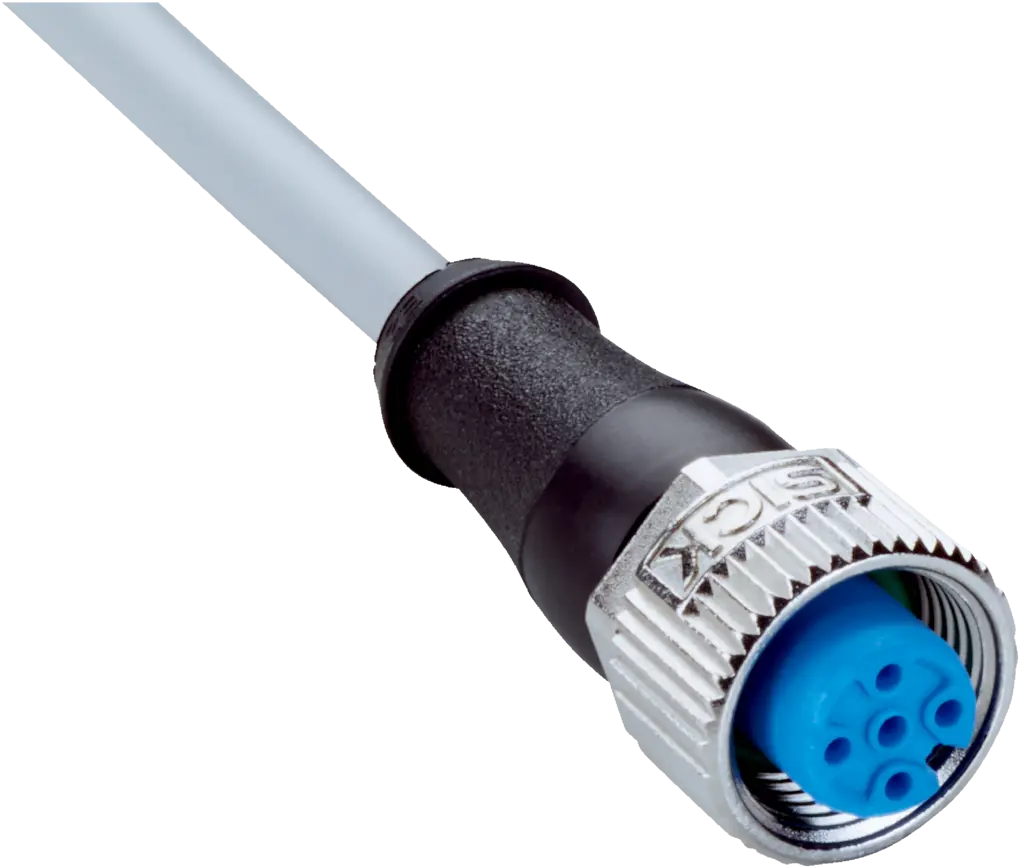

Connection Type Head A: Female connector, M12, 4-pin, straight, A-coded
Connection Type Head B: Flying leads
Locking Plug Connector: Screw connection
Connector Material: TPU (Black)
Locking Nut Material: Zinc die-cast, nickel-plated
Seal Material: FKM
Tightening Torque: 0.6 Nm
Cable: 15 m, 4-wire, PVC (Gray)
Cable Diameter: 5 mm
Conductor Cross Section: 0.34 mm²
Shielding: Unshielded
Bending Radius: Flexible use > 10 x cable diameter, Stationary > 5 x cable diameter
Nominal Voltage: 300 V AC
Test Voltage: 2,000 V AC
Current Loading: 4 A
Signal Type: Sensor/actuator cable
Application: Zones with chemicals, Uncontaminated zones
Authorizations: CE, UL (File No. E335179)
Enclosure Rating: IP65/IP66K/IP67
Operating Temperature:
Flexible use: –5 °C to +80 °C
Stationary: –30 °C to +80 °C
Head: –25 °C to +85 °C
Contamination Rating: 3
Insulation Resistance: 100 MΩ
Overvoltage Category: III
Thermal Resistance: Flame retardant (UL 1581 VW1 / CSA FT1)
