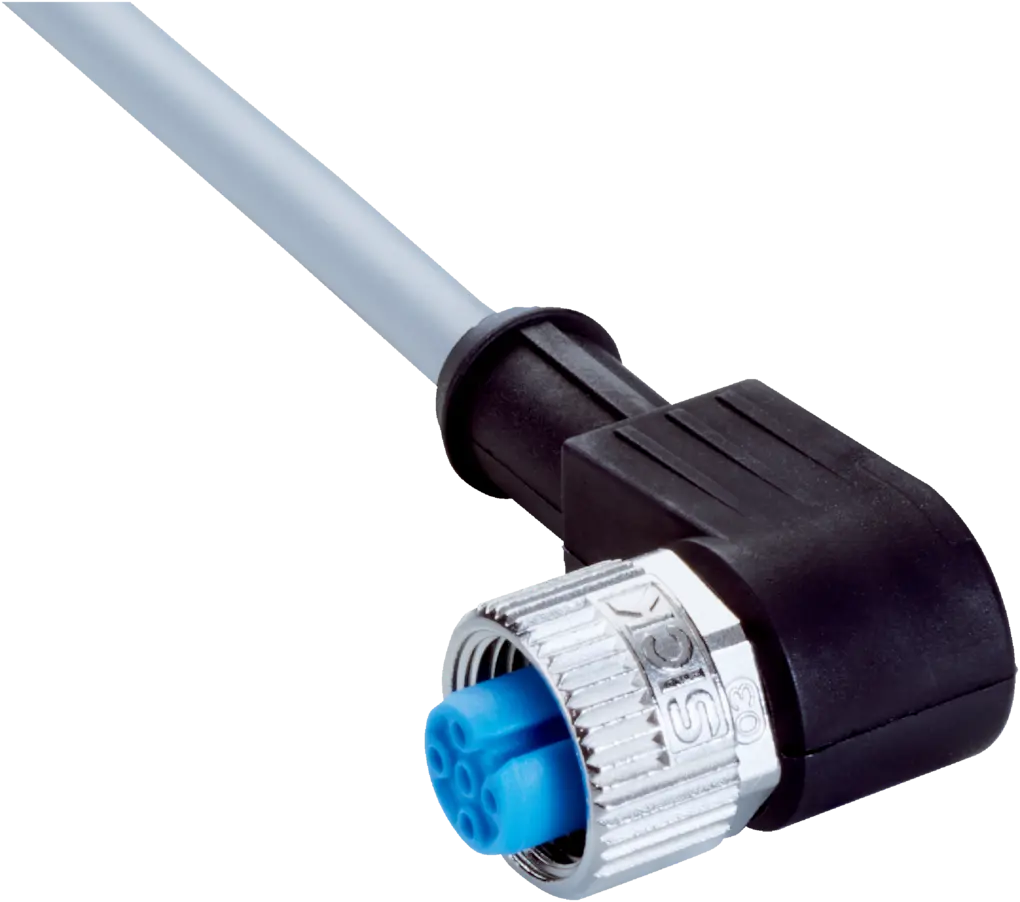

Connector Type: M12, 5-pin female (angled, A-coded) and flying leads
Cable: 5 m, 5-wire, unshielded PVC, gray jacket, 5.2 mm diameter
Voltage Ratings: 300 V AC nominal, 2,000 V AC test, 125 V AC/DC reference
Current Loading: 4 A
Operating Temp: -30 °C to +80 °C (stationary), -5 °C to +80 °C (flexible)
Enclosure Rating: IP65 / IP66K / IP67
Applications: Zones with chemicals, uncontaminated environments
Material: TPU connector, FKM seal, zinc die-cast locking nut
Authorizations: CE, UL E335179
Additional Features: Flame retardant (UL 1581 VW1 / CSA FT1)
Bending Radius:
Flexible use: > 10 x cable diameter
Stationary position: > 5 x cable diameter
