[2095884] SICK YF8U13-050VA1XLEAX (New) - SICK

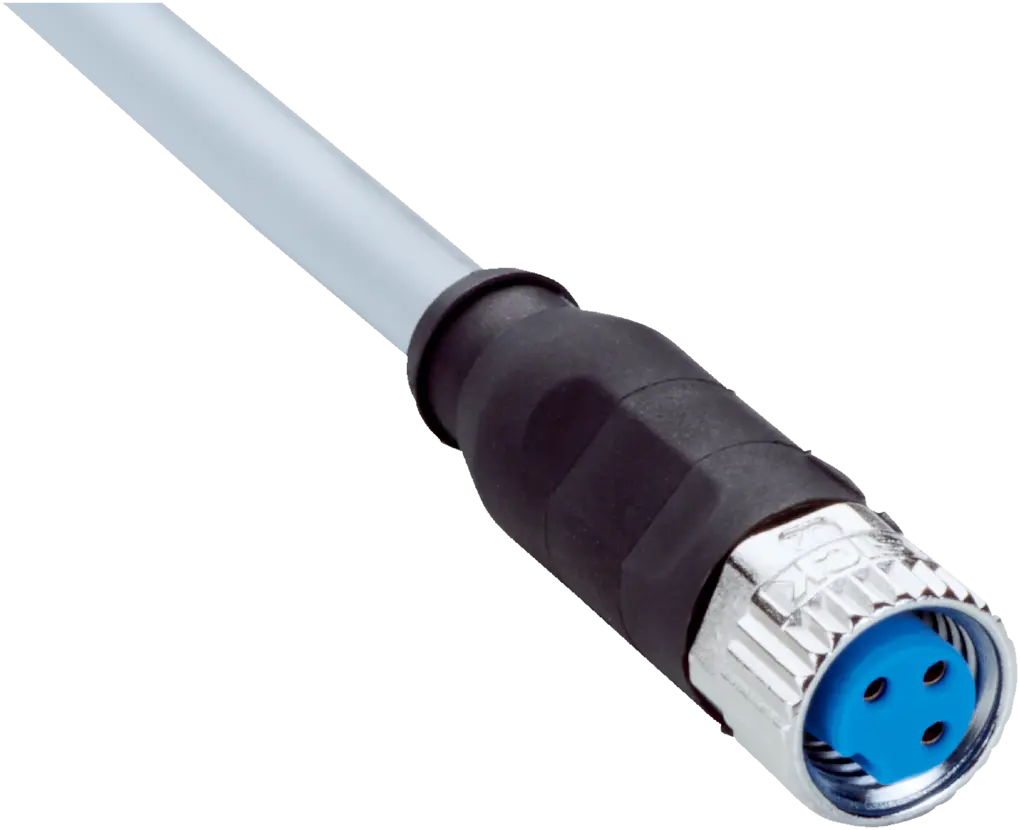

This M8 connection cable features a 3-pin, A-coded female connector (head A) with screw locking and flying leads (head B). The 5-meter cable is PVC, 3-wire, and unshielded, with a diameter of 4.5 mm and a conductor cross-section of 0.25 mm². Rated for 300 V AC, it supports up to 4 A of current, with a test voltage of 2,000 V AC and an impulse voltage of 1.5 kV. The assembly is IP65, IP66K, and IP67 rated, suitable for use in chemical and uncontaminated zones, with an operating temperature range from -30 °C to +85 °C. It meets UL standards
| Marca/Fabricante: | SICK |
| Estatus: |
Activo
|
1 piezas disponibles
Información Técnica
