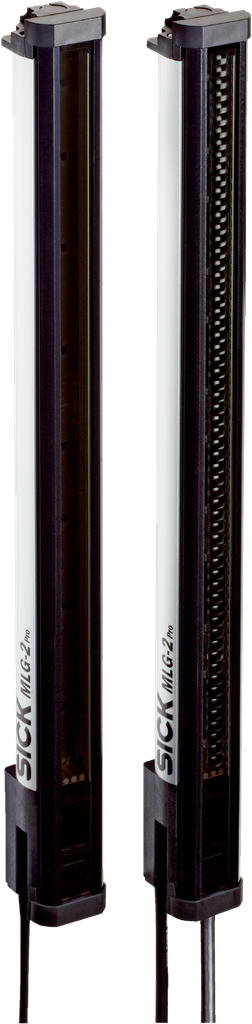

Rejillas fotoeléctricas E/R Minimum object length 4 mm 1) Beam separation 5 mm Resolution 0.1 mm Cycle time 32 µs per beam
Repeatability 6 µm 2) Accuracy ± 0.3 mm 3) Type of synchronization Cable Number of beams 90 Total measuring field width 445 mm
Measuring field width detailed Measuring field width (connection side) 445 mm Blind zone (medium range) 0 mm Measuring field width (head side) 0 mm
